Mount this camera inside or outside - Full "O" ring sealed camera - You're Done!!
Mount anywhere with a plain 1/4 - 20 bolt! or use Swivel mount Kit supplied.
How about heavy duty sports applications? - wow! .....

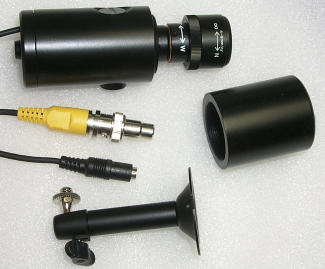

Helmet Cam - Click to see Picture of typical Helmet "Lipstick"
Cam package
Or Industrial Inspection applications.
Output compatable with your VCR or video capture board
Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)
Incredibly small Weather-Resistant Housing included
Automatically adjusting iris - for varying light levels
Camera Specifications:
Scanning System: EIA 525 lines, 2:1 Interlacing
Image Sensor: 1/3 inch solid state interline Colour CCD ("NOT" Low res. / low sensitivity CMOS type sensor)
Lens: 4 mm - 8 mm manual zoom
Field of view: Variable
Sync System: Internal
Iris: Automatic adjust
Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
Horizontal resolution: more than ~ 350 TV lines
Luminance S/N: More than 45db
MINIMUM ILLUMINATION: 0.3 LUX (FI.2 10 IRE)
Voltage: 9 - 12 volts @ 150 ma.
Size: 37 mm(D) X 106 mm(L)
ENCLOSURE: O-Ring sealed aluminium
Simple wiring. P.S. jack & RCA Plug included. 9 - 12 Volt power supply is needed.
If you want us to do custom wiring or add a power supply - just ask & we'll quote.
Full instructions supplied.
