# MVC-Snake-1 & Snake-2
Miniature Micro-Head Snake Camera Color Video Camera

© ©

Snake-2 with 6 foot head

©

---

Inspect amazing places that you could never see before! - WOW.

---

Robotics, Surveillance Or Industrial Inspection applications.

1. Stunning Japanese Micro lens - fully adjustable focus from room viewing down to 1/2"away.
2. Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)
3. Incredibly small with excellent Japanese digital processing chipset
4. Automatically adjusting iris - for varying light levels

Camera Specifications:

• Effective Pixel: NTSC 512(H), 492(V)
• Image Sensor: 1/4 inch solid state interline Colour CCD
  ("NOT" Low res. / low sensitivity CMOS type sensor)
• Lens: Japanese Adjustable F=2.6, f=3.9mm,
• Field of view: 52°(H), 40°(V)
• Sync System: Internal
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/10,000 sec.
• Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
• Horizontal resolution: ~ 330 TV lines
• Luminance S/N: More than 45db
• Sensitivity: about 1 Lux
• Voltage: 9 volts for 6 Foot version, 12 volts @ 120 ma. for 1 foot version
• Operating Temperature: 5°C~40°C /RH90% Max

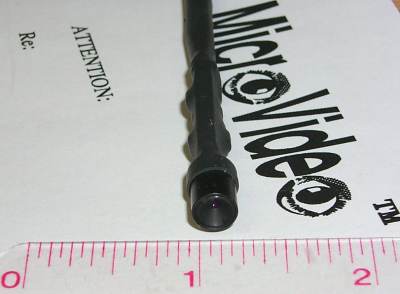

• Head Size: 7.5 mm diameter !!!

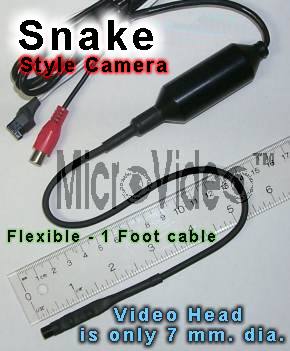

• Length: cable Length approx. 12 " OR 6 Foot Version available

• Simple wiring. Power & RCA Plug included. 12 Volt power supply is needed.
• If you want us to do custom wiring or add a power supply - just ask & we'll quote.
• Full instructions supplied.
