# MVC2300 Miniature "Tube"
Color Lipstick Video Cameras

©

©

---

Drill a 7/8" Hole into a Door or Wall - Slip Camera in - You're Done!!
Mount anywhere with a plain bolt! or use Swivel mount Kit supplied.

---

How about Helmet mounting? - wow! .....

---

Helmet Cam - Click to see Picture of typical Helmet "Lipstick" Cam package

---

Or Industrial Inspection applications.

---

1. Output compatable with your VCR or video capture board
2. Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)
3. Incredibly small Weather-Resistant Housing included
4. Automatically adjusting iris - for varying light levels

Camera Specifications:

• Scanning System: EIA 525 lines, 2:1 Interlacing
• Image Sensor: 1/4 inch solid state interline Colour CCD
  ("NOT" Low res. / low sensitivity CMOS type sensor)

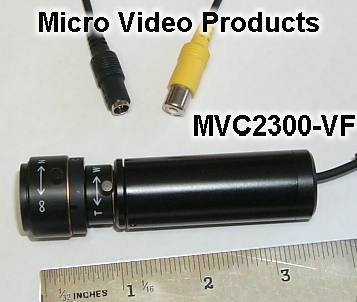

• Lens: f = 3.6 mm OR see Varifocal version with 4 - 8 mm. manual zoom
• Field of view: ~ diagonal 70 degrees
• Sync System: Internal
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
• Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
• Horizontal resolution: more than ~ 330 TV lines
• Luminance S/N: More than 45db
• Sensitivity: .5 Lux
• Voltage: 9 - 12 volts @ 150 ma.
• Size: ~ 7/8" Diameter barrel x 2-3/4" long
• ENCLOSURE: Made of Aluminum, Weather-Resistant

• Simple wiring. P.S. jack & RCA jack included. 9 - 12 Volt power supply is needed.
• If you want us to do custom wiring or add a power supply - just ask & we'll quote.
• Full instructions supplied.
